HOW TO USE THE MANUALS

You are a unique user. You have a different level of expertise to any other user. You may be a complete beginner, or you may have a number of years experience using computers. The manuals have to give you enough information to allow you to use it. They may give you too much information, or they may not give you enough.

You will have to use the manuals to learn how to operate the computer in the first place. Secondly, when you have used the computer they will be used to discover the finer points of its use. They then become reference manuals.

In using the computer you will see that there are many possible modes it can be placed in. It is not always possible to describe these modes without refer- ence to the others. Some parts of the manuals.have been written to cope with the reference function, some for the first time use of the computer.

If you come across something you do not understand, because you are learning a particular mode of operation for the first time, you can either move on to the next part of the manual or refer to the index for a fuller description of an individual topic.

If you are not a first time user please bear with the explanations that have been given in detail. In the same way, the first time user has to reject some informa- tion that you want.

In setting up the computer for the very first time, some steps have to be taken to insert the battery and initialize the computer. Your dealer will probably have carried out these steps for you, in which case you can move on to the next sec- tion.

The manuals cannot describe the complete use of CP/M or BASIC. They are intended to provide enough information for you as a user to utilise the com- puter effectively from the start, and as reference guide to the individualities of the computer and its use. There are many other books which describe com- puters generally, the use of CP/M and how to program in BASIC. They should be used to learn more.

There are important areas where it is necessary to be careful in using the PX-8. In these cases a special symbol has been placed next to the text to warn you that a problem may occur if you do not follow the instructions correctly, or special precautions are necessary. This symbol is:

Chapter 1

OVERVIEW

The PX-8 is a portable computer which has more facilities than many desk top computers. This chapter will give you an idea of the general capabilities of the computer. The next chapter explain the features of the PX-8 so that they can be exploited to the full and you as a user can obtain maximum benefit from them in operating the computer. Some features are necessary for running the PX-8 normally and would be familiar to the user who has handled a microcom- puter before, but others have been added to increase the power of the PX-S.

1.1 Unpacking Notes

When you unpack your PX-8 package you should find the following items. Con- firm that the following are contained in the package. Please keep the packing materials in case the PX-8 needs to be returned for any reason.

1-1

1.2 Hardware Configuration

This section describes the hardware components of the PX-8. All the hardware components required for basic operation are built into a single unit. These in- clude the central processor units (CPUs), memory, keyboard, display, microcas- sette tape deck and interfaces for a printer and serial communication with other devices including disk drives.

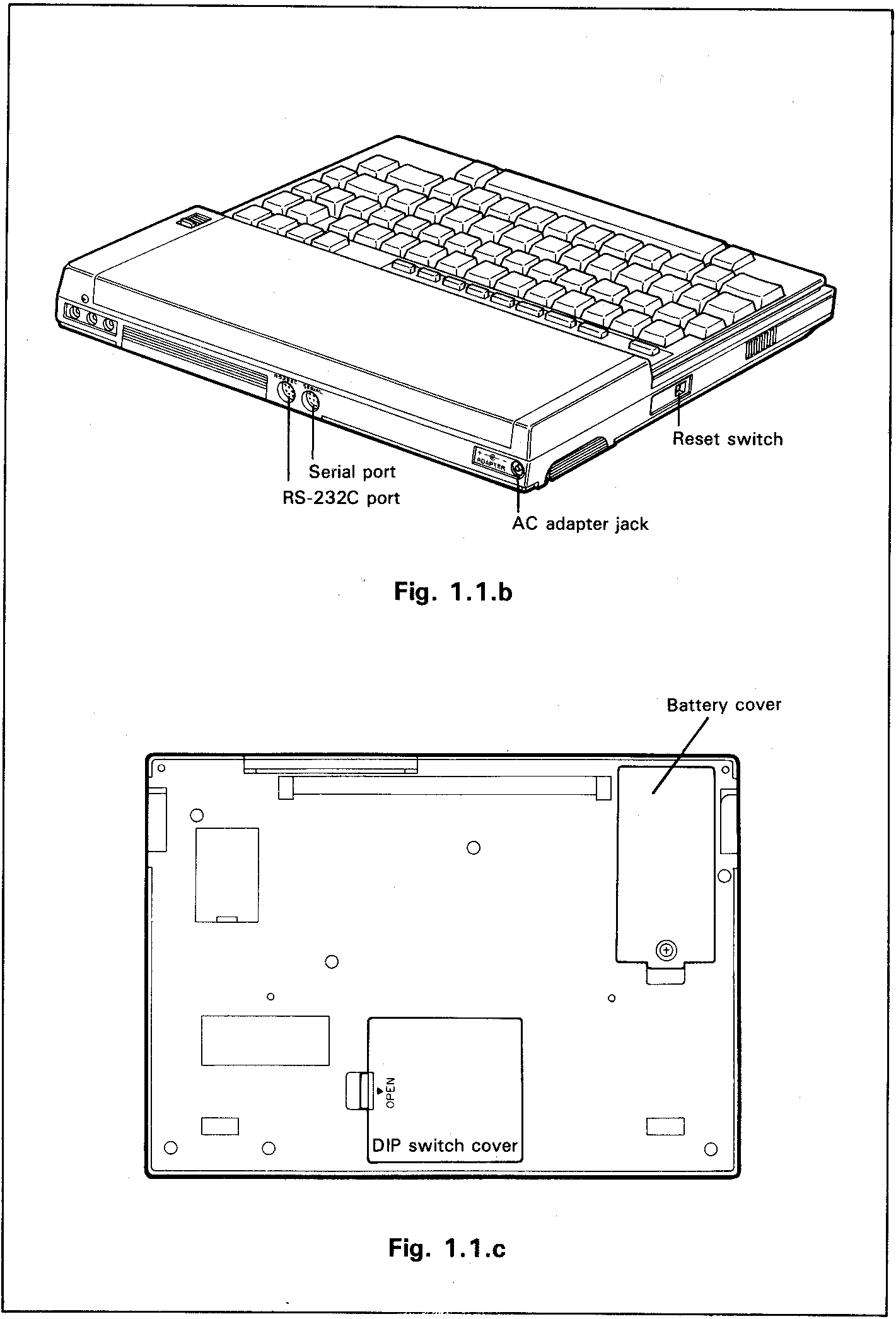

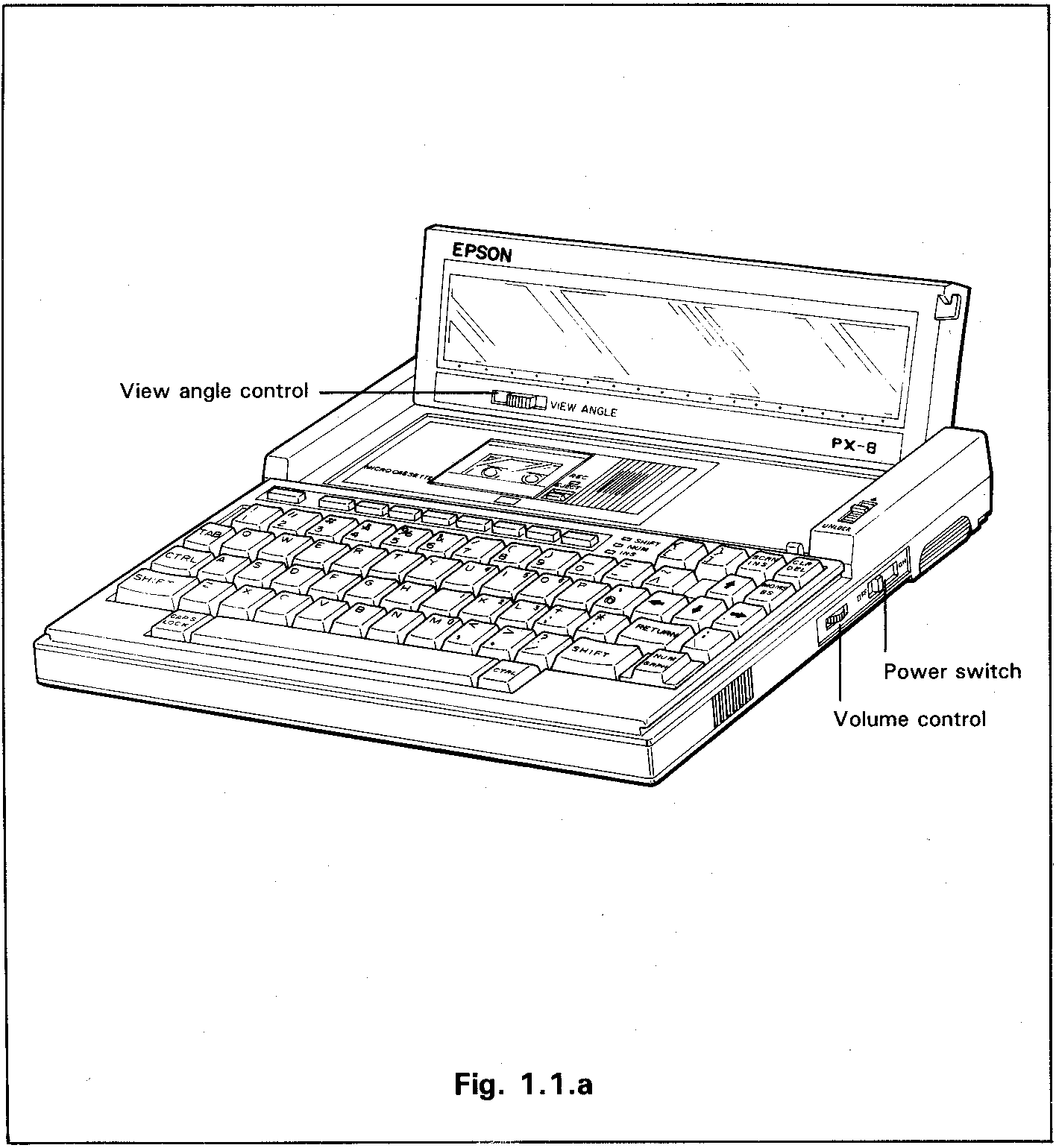

Figures 1.la to 1.le show the appearance of the PX-8 from several viewpoints.

1-2

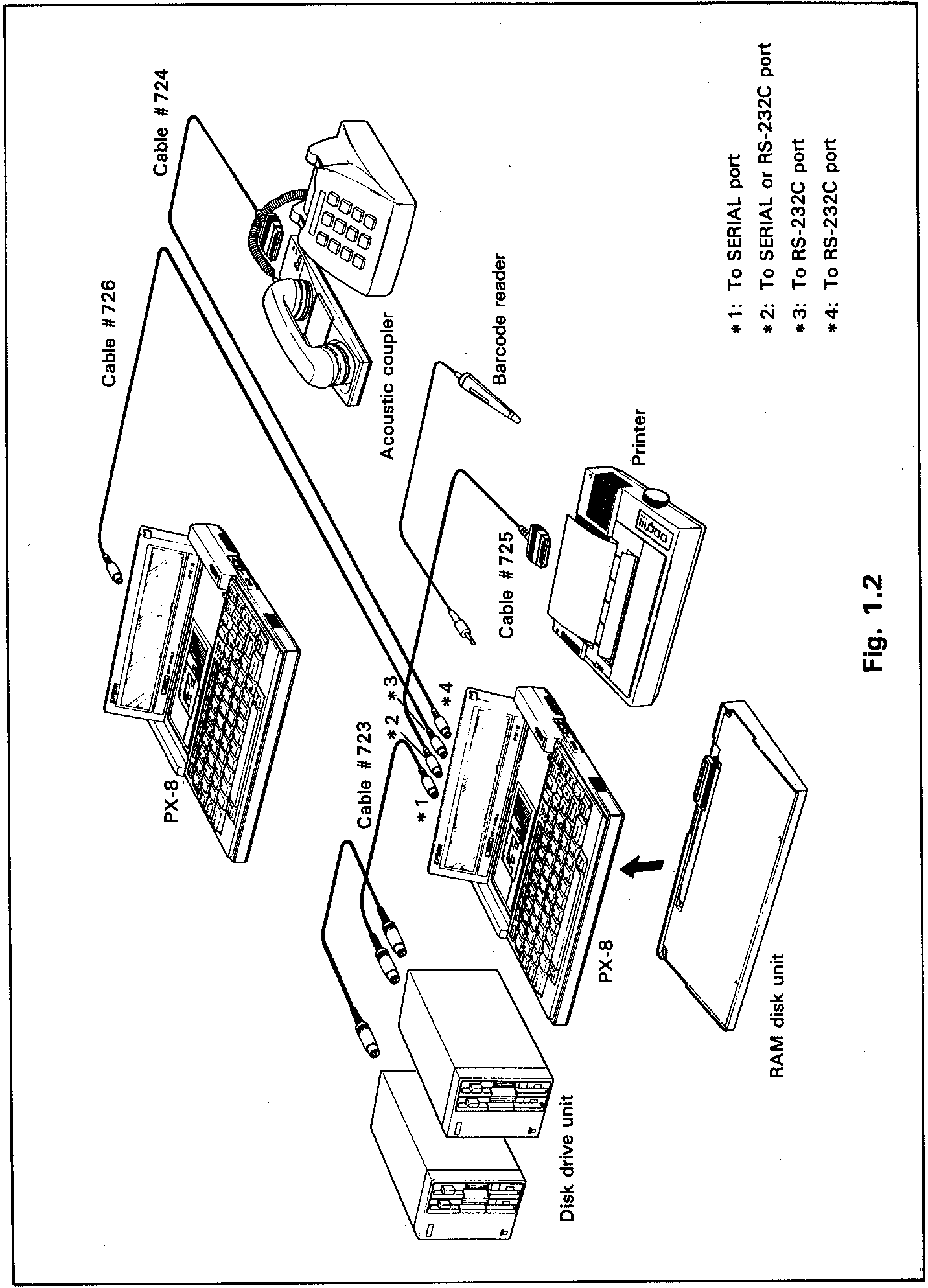

1.2.1 Configuration diagram

1-4

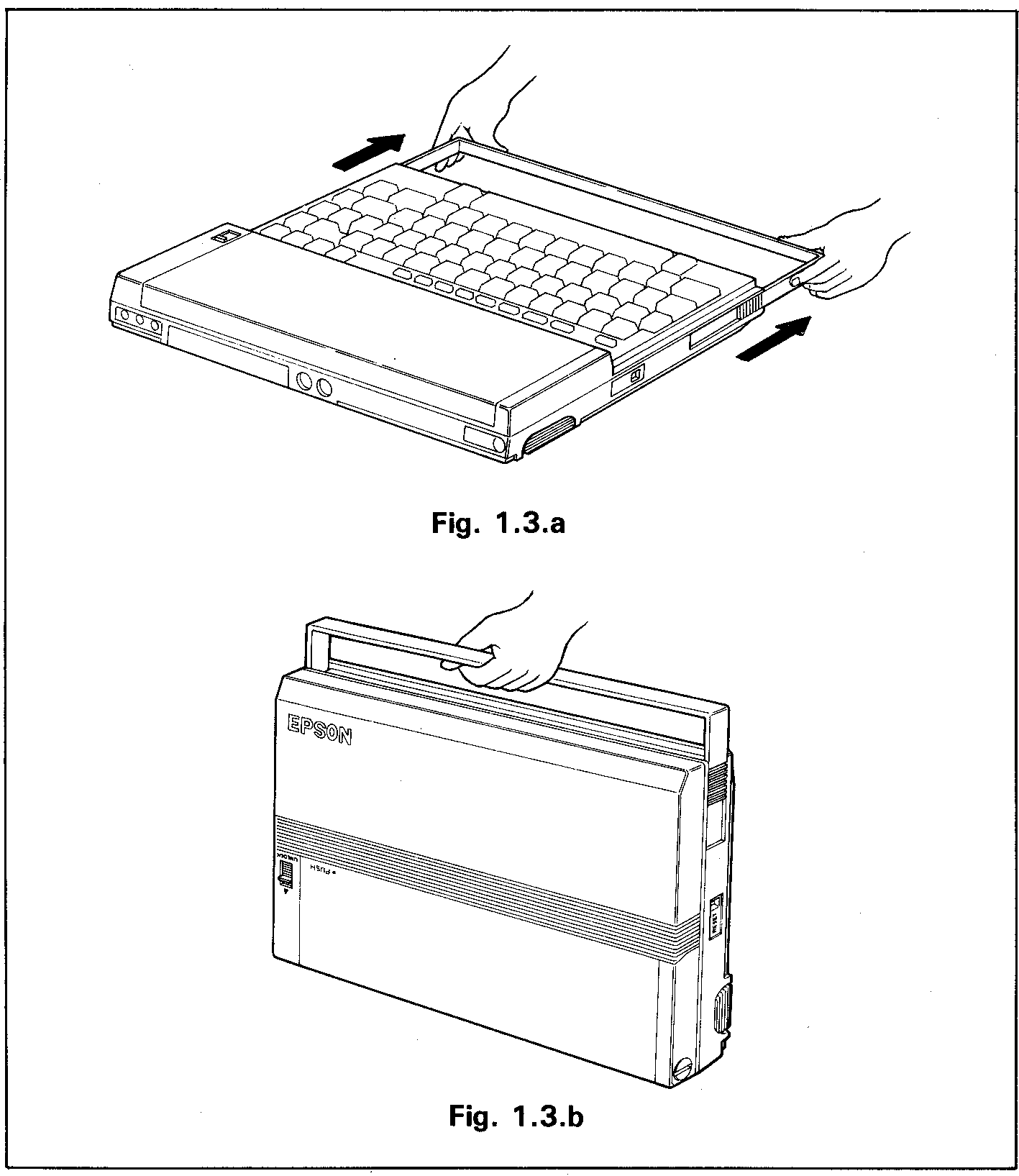

1.2.2 The carrying handle

The handle enables the PX-8 to be carried easily like a briefcase. It is possible to slide the handle up to the main body of the computer when not in use.

To extend the handle, place the index finger of each hand on the serrated por- tion of the handle, and pull it gently towards you, as shown in the diagram. To retract it, simply push the handle towards the computer using even pressure.

1-5

1.2.3 The keyboard

The keyboard is accessed by removing the protective cover.

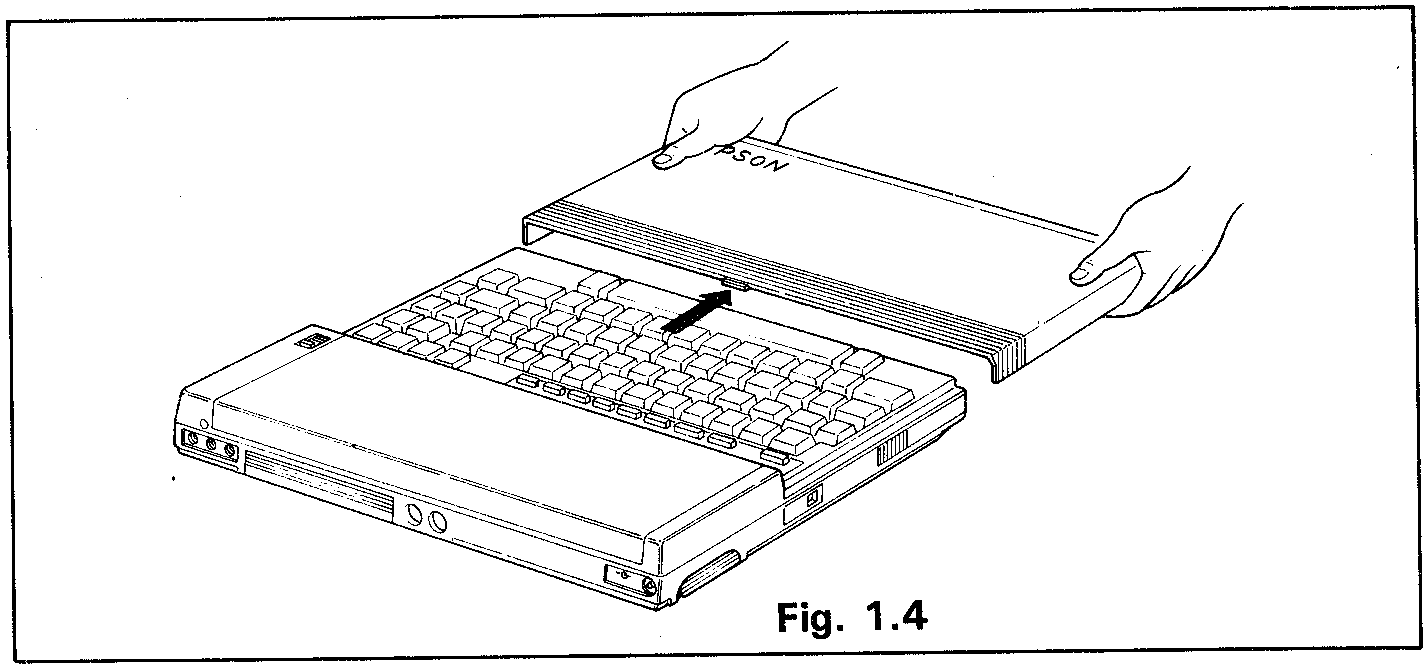

To remove the cover, hold the PX-8 with the keyboard cover towards you and uppermost, preferably on a level working surface.

Place the thumb of each hand on the top of the cover, with the other fingers on each side of the cover. Press gently with the index fingers to release the catch in the top centre (see the arrow in the diagram). Now pull the whole cover towards you using the both hands so that it slides off.

To replace the cover, place it centrally over the keyboard, so that the edges of the cover fit evenly on the guides. Push the cover home using the thumbs applying pressure evenly at both ends. Take care that the cover moves along the guides. Do not try to force it vertically down. If the cover is not in the guides, take it off and try again. Make sure the cover is fully up against the LCD screen and the catch has fitted firmly.

The layout of character keys on the PX-8 keyboard varies from country to coun- try. The layouts available are as follows.

1-6

It is possible to change the display to that of any other country both by setting a DIP switch and under software control. In this manual, the ASCII keyboard is used as the standard for explanation.

The PX-8 is equipped with folding legs which makes it possible to change the keyboard angle. Opening these legs will make the keyboard easier to use when working with the PX-8 on a table or desk.

1-7

1.2.4 Display

The PX-8 uses a large LCD display of 80 columns x 8 lines, on a hinge which can be folded down to protect the display when not in use.

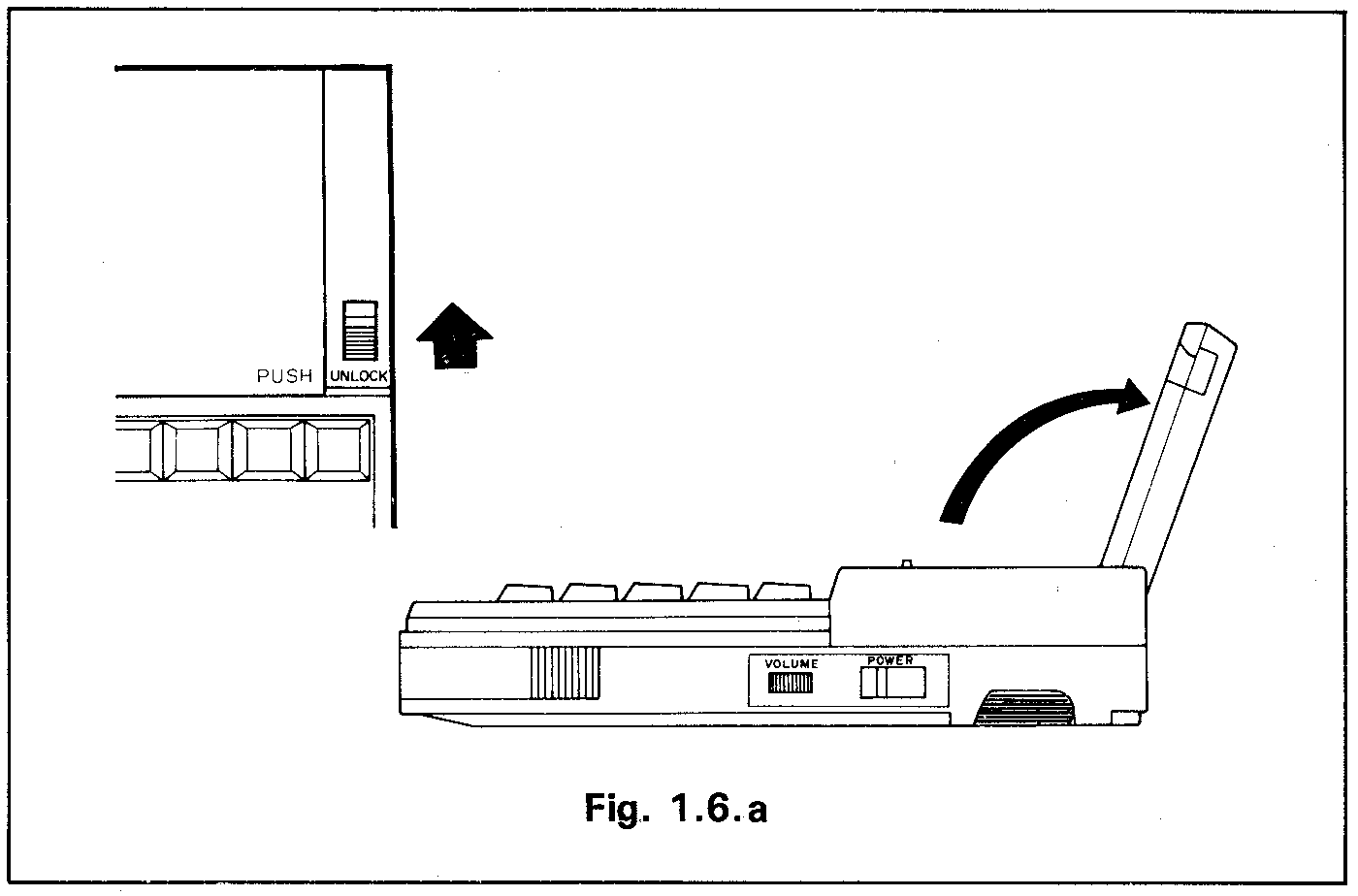

Unlock the display by pressing the switch on its right toward the rear. When the display pops up slightly, open it by hand.

The view angle control on the front of the display makes it possible to obtain the optimum contrast.

1-8

1.2.5 CPU and memory

The PX-8 has three central processor units. The main CPU is a Z80 compatible microprocessor. This controls the programs which are run on the PX-8. A slave CPU 6301 is used for display and Input/Output (I/0) control, i.e. communi- cation with other devices such as printers, disk drives, the internal speaker, cas- sette drives etc. The sub CPU 7508 controls interfacing with the keyboard and the Analog/Digital (A/D) converter which allows signals from other devices to be read as voltages and converted into numbers the PX-8 can understand.

The main CPU controls 64K bytes of RAM and 32K bytes of ROM. The slave CPU has 6K bytes of RAM (used as video RAM) and 4K bytes of ROM.

All RAM is backed up by built-in batteries so that the contents can be retained when the power switch is turned off.

1.2.6 Microcassette tape deck

The PX-8 is equipped with a microcassette tape deck which can be used for saving data and program files sequentially. The microcassette tape deck is con- trolled manually or by software.

The maximum number of files which can be stored in a microcassette is 12. This restriction is due to the size of the directory on the cassette tape.

1-9

1.3 Software Configuration

1.3.1 Operating systems

The operating system of the PX-8 is an extended version of CP/M which is one of the most popular operating systems for small business computers and personal computers. CP/M is an abbreviation for Control Program for Microprocessors. This operating system was developed by Digital Research and is a very popular operating system on microcomputers because programs deve- loped under CP/M can be used with minimum modification on any computer using the CP/M operating system. This makes a vast library of application pro- grams for this system instantly available commercially, whereas with a new oper- ating system they would have to be written specifically for the operating system. EPSON has added a variety of useful functions to CP/M version 2.2 in de- veloping the PX-8 operating system. Further details of the use of CP/M on the PX-8 are given in Chapter 3.

1.3.2 Utilities

The PX-8 has the ability to use programs loaded from the built in microcas- sette tape or from floppy disk (using the optional disk unit), but it has a more powerful facility to use programs which reside in ROMs which can be plugged into the sockets underneath the computer. This is a more convenient method of storing programs than either tape or disk, since the programs are available almost immediately, whereas with disk and tape it can take a noticeable time to load them into memory.
